Data sheet
DCT series

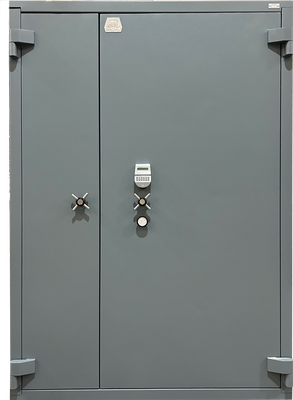

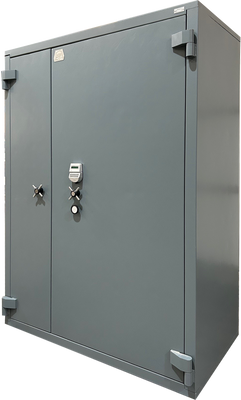

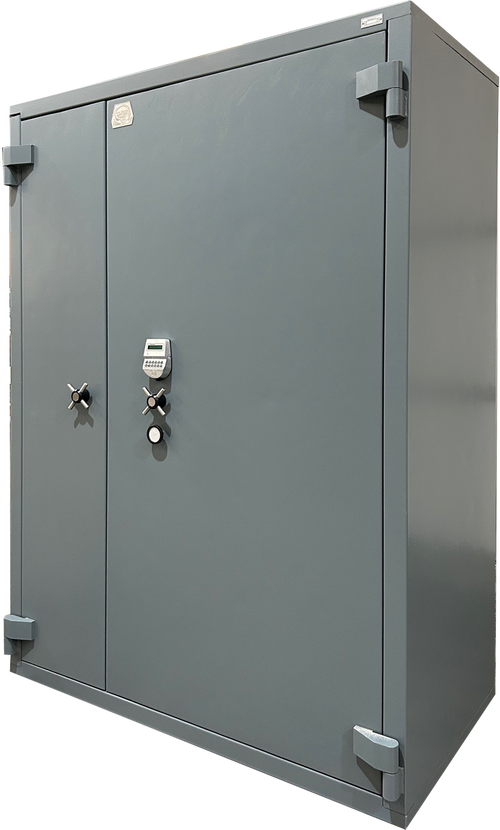

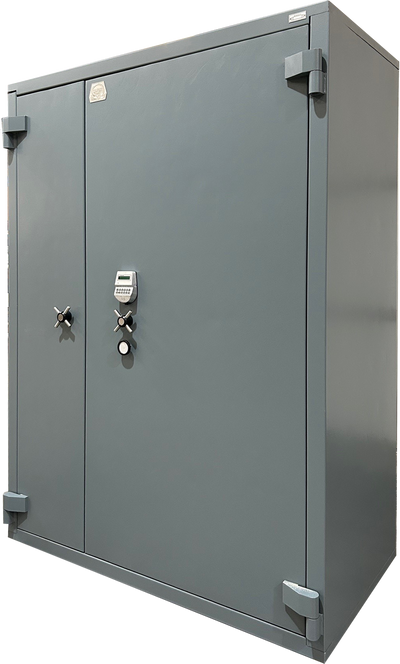

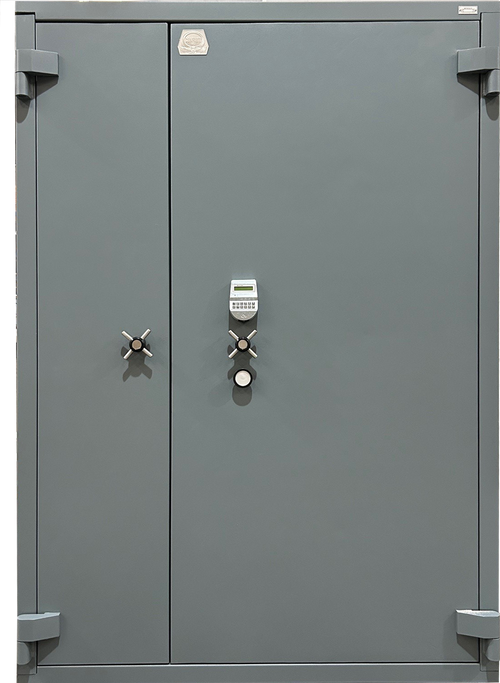

DCT4
Modular safes
Outside Dimensions (H x W x D cm)
221 x 156,4 x 80,5 (+6,5 cm di sporgenza maniglia)
Inside Dimensions (H x W x D cm)
204,6 x 140 x 57,6
DOMINO is the capacious modular safe designed by Conforti to accommodate security boxes. It can be easily assembled on spot.
Domino is proposed in two versions:
- DCT models: certified according to the UNI EN 1143-1 - 5th grade European rule
- DMN models: not certified
It has been specifically conceived for banks and hotels, and thanks to easy assembling on final location, delivery is no problem despite its size.

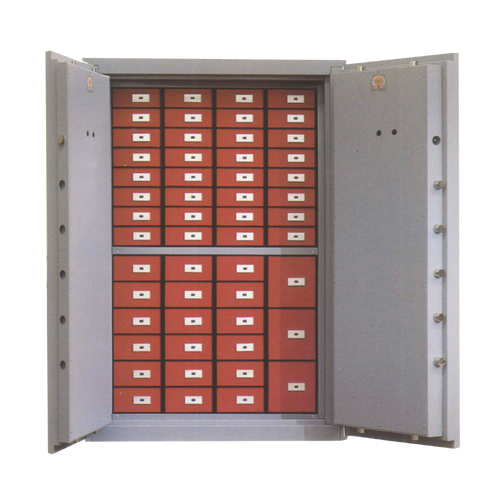

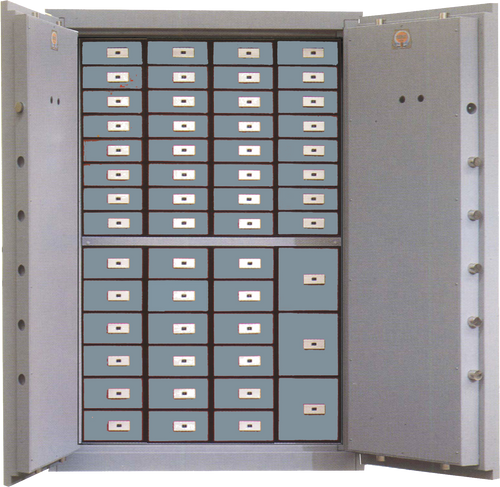

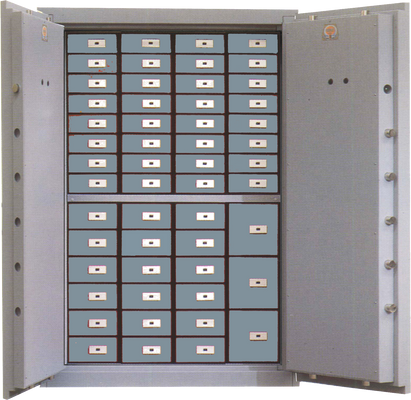

The modular Domino safe includes 4+4 models containing 2, 4 or 6 columns of security boxes.
The assembled safe becomes one highly resistant block against possible mechanical or chemical attacks.
Specifications
- Inside and outside walls in high quality steel
- highly resistant inside armouring
- manganese plate to protect closing mechanisms
- door-frame closing by rectangular steel bolts on vertical and horizontal sides
Standard locks
Mechanical key lock (UNI EN 1300 grade B certified)
Mechanical combination lock
Other locks on request:
These safes can be equipped with mechanical or electronic time lock.
Colour: RAL 7031 Grey
Variant |
Outside Dimensions (H x W x D cm) |
Inside Dimensions (H x W x D cm) |
Weight (kg) |
Volume litres |
DCT2 |
172 x 86,2 x 65,8 (+6,5 cm di sporgenza maniglia)
|
155,6 x 69,8 x 42,9
|
1.420
|
465
|
DCT3 |
195 x 86,2 x 65,8 (+6,5 cm di sporgenza maniglia)
|
178,6 x 69,8 x 42,9
|
1.740
|
534
|
DCT4 |
221 x 156,4 x 80,5 (+6,5 cm di sporgenza maniglia)
|
204,6 x 140 x 57,6
|
3.300
|
1649
|
DCT6 |
221 x 219,8 x 80,5 (+6,5 cm di sporgenza maniglia)
|
204,6 x 203,4 x 57,6
|
3.950
|
2397
|
DMN2 |
174,5 x 89 x 67,5 (+6,5 cm di sporgenza maniglia)
|
155,7 x 69,5 x 43
|
1.335
|
469
|
DMN3 |
197,5 x 89 cm x 67,5 (+6,5 cm di sporgenza maniglia)
|
178,8 x 69,5 x 43
|
1.550
|
534
|
DMN4 |
223 x 158 x 82 (+6,5 cm di sporgenza maniglia)
|
205 x 140 x 57,5
|
3.500
|
1635
|
DMN6 |
223 x 221,5 x 82 (+6,5 cm di sporgenza maniglia)
|
205 x 203,5 x 57,5
|
4.300
|
2402
|
